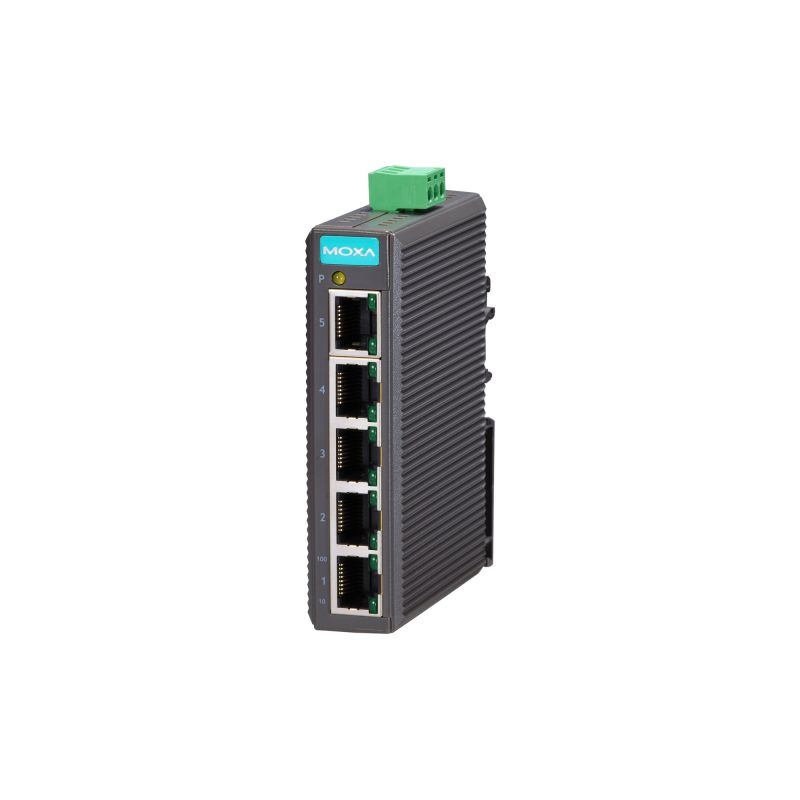

10/100BaseT(X) (RJ45 connector) IEEE802.3/802.3u/802.3x support Broadcast storm protection DIN-rail mounting ability -10 to 60°C operating temperature rangeEthernet Interface

Standards	IEEE 802.3 for10BaseTIEEE 802.3u for 100BaseT(X)IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector)	Full/Half duplex modeAuto MDI/MDI-X connectionAuto negotiation speed

Switch Properties

Processing Type	Store and Forward
MAC Table Size	1 K
Packet Buffer Size	512 kbits

Power Parameters

Input Voltage	24 VDC
Input Current	0.11 A @ 24 VDC
Operating Voltage	12 to 48 VDC
Connection	1 removable 3-contact terminal block(s)
Overload Current Protection	1.1 A @ 24 VDC
Reverse Polarity Protection	Supported

Physical Characteristics

Housing	Plastic
IP Rating	IP30
Dimensions	24.9 x100x 86.5 mm (0.98 x 3.94 x 3.41 in)
Weight	135g(0.30 lb)
Installation	DIN-rail mounting

Environmental Limits

Operating Temperature	-10to 60°C (14to140°F)
Storage Temperature (package included)	-40 to 85°C (-40 to185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

Safety	EN 60950-1, UL508
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air:8 kVIEC 61000-4-3 RS:80 MHz to 1 GHz: 3 V/mIEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kVIEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS:3VIEC 61000-4-8 PFMF
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
Freefall	IEC 60068-2-31

MOXA EDS-205 Available Models

Model 1	MOXA EDS-205A-S-SC
Model 2	MOXA EDS-205A-M-ST
Model 3	MOXA EDS-205A-S-SC-T
Model 4	MOXA EDS-205A-M-SC-T
Model 5	MOXA EDS-205A
Model 6	MOXA EDS-205A-T
Model 7	MOXA EDS-205A-M-ST-T
Model 8	MOXA EDS-205A-M-SC
