Protocol conversion between Modbus RTU/ASCII/TCP, IEC 60870-5-101, and IEC 60870-5-104 Supports IEC 60870-5-101 master/slave (balanced/unbalanced) Supports IEC 60870-5-104 client/server Supports Modbus RTU/ASCII/TCP master/client and slave/server Effortless configuration via web-based wizard Status monitoring and fault protection for easy maintenance Embedded traffic monitoring/diagnostic information for easy troubleshooting microSD card for configuration backup/duplication and event logs Built-in Ethernet cascading for easy wiring Redundant dual DC power inputs and relay output -40 to 75°C wide operating temperature models available Serial port with 2 kV isolation protection Security features based on IEC 62443Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)	2 Auto MDI/MDI-X connection
Magnetic Isolation Protection	1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols	Modbus TCP Client (Master), Modbus TCP Server (Slave), IEC 60870-5-104 Client, IEC 60870-5-104 Server
Configuration Options	Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console
Management	ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MIB	RFC1213, RFC1317
Time Management	NTP Client

Security Functions

Authentication	Local database
Encryption	HTTPS, AES-128, AES-256, SHA-256
Security Protocols	SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)

Power Parameters

Input Voltage	12to48 VDC
Input Current	455 mA@12VDC
Power Connector	Screw-fastened Euroblock terminal

Relays

Contact Current Rating

Resistive load: 2A@30 VDC

Physical Characteristics

Housing	Metal
IP Rating	IP30
Dimensions	36x105x140 mm (1.42x4.14x5.51 in)
Weight	507g(1.12lb)

Environmental Limits

Operating Temperature	MGate 5114:0 to 60°C (32 to 140°F) MGate 5114-T:-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

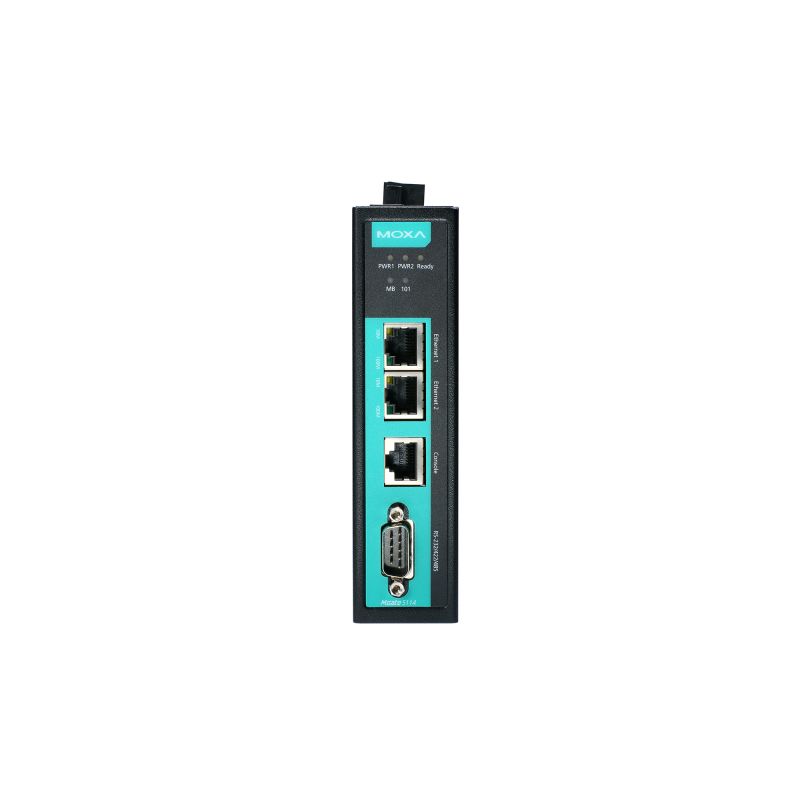

MOXA MGate 5114  Available Models

Model 1	MOXA MGate 5114
Model 2	MOXA MGate 5114-T
