ACT20P: The flexible solution Precise and highly functional signal converters Release levers simplify handling

Depth	114.3 mm
Depth (inches)	4.5 inch
Height	117 mm
Height (inches)	4.606 inch
Width	22.5 mm
Width (inches)	0.886 inch
Net weight	198.7 g

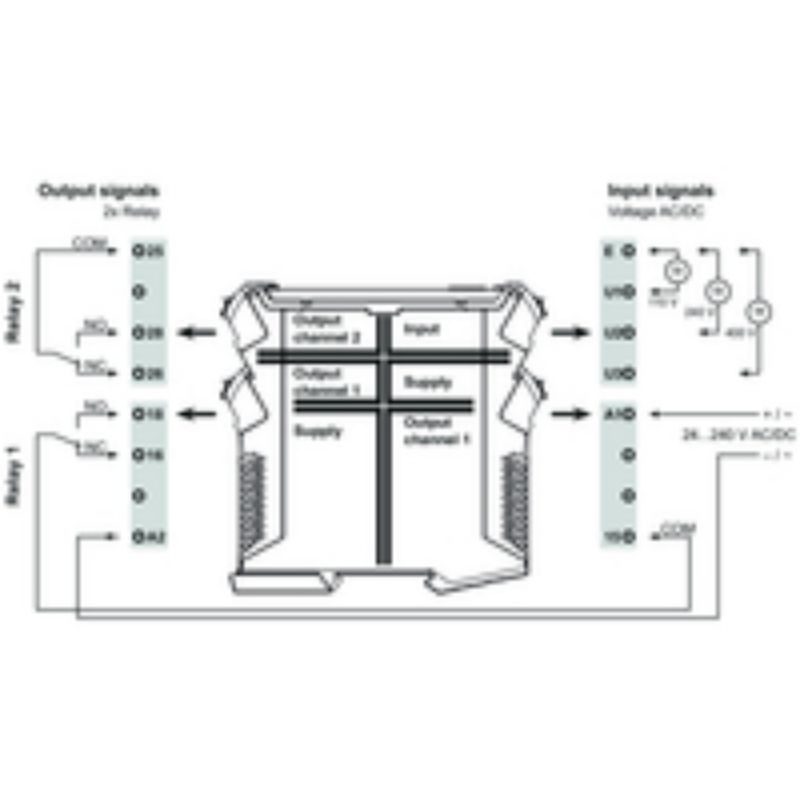

Version	Limit value monitoring, Input: single-phase voltage, Relay output, 110 / 240 / 400 V AC/DC, 2 x relays
Order No.	7760054164
Type	ACT20P-VMR-1PH-H-S
GTIN (EAN)	6944169689079
Qty.	1 pc(s).



Order No.	Type
7760054164	ACT20P-VMR-1PH-H-S
7760054359	ACT20P-VMR-1PH-H-P
7760054165	ACT20P-VMR-3PH-ILP-H-S
7760054361	ACT20P-VMR-3PH-ILP-H-P
7760054305	ACT20P-TMR-RTI-S
7760054352	ACT20P-TMR-RTI-P
7940045760	ACT20P-UI-2RCO-DC-S
2456840000	ACT20P-UI-2RCO-DC-P
1238910000	ACT20P-UI-2RCO-AC-S
2495690000	ACT20P-UI-2RCO-AC-P

  When used for industrial monitoring applications, sensors can record ambience conditions. Sensor signals are used within the process to continually track changes to the area being monitored. Both digital and analogue signals can occur. Weidmuller meets the ever increasing challenges of automation and offers a product portfolio tailored to the requirements of handling sensor signals in analogue signal processing, include series ACT20C. ACT20X. ACT20P. ACT20M. MCZ. PicoPak .WAVE etc. The analogue signal processing products can be used universally in combination with other Weidmuller products and in combination among each other. Their electrical and mechanical design is such that they require only minimal wiring efforts. Housing types and wire-connection methods matched to the respective application facilitate the universal use in process and industrial automation applications. The product line includes the following functions: Isolating transformers, supply isolators and signal converters for DC standard signals Temperature measuring transducers for resistance thermometers and thermocouples, frequency converters, potentiometer-measuring-transducers, bridge measuring transducers (strain gauges) trip amplifiers and modules for monitoring electrical and non-electrical process variables AD/DA converters displays calibration devices The products mentioned are available as pure signal converters / isolation transducers, 2-way/3-way isolators, supply isolators, passive isolators or as trip amplifiers.
