Universal industrial relays with high efficiency. D-SERIES relays have been developed for universal use in industrial automation applications where high efficiency is required. They have many innovative functions and are available in a particularly large number of variants and in a wide range of designs for the most diverse applications. Thanks to various contact materials (AgNi and AgSnO etc.), D-SERIES products are suitable for low, medium and high loads. Variants with coil voltages from 5 V DC to 380 V AC enable use with every conceivable control voltage. The clever contact series connection and a built-in blowout magnet reduce contact erosion for loads up to 220 V DC/10 A, thus extending the service life. The optional status LED plus test button ensures convenient service operations. D-SERIES relays are available in DRI and DRM versions with either sockets for PUSH IN technology or screw connection and can be supplemented with a wide range of accessories. These include markers and pluggable protective circuits with LEDs or free-wheeling diodes. Control voltages from 12 to 230 V Switching currents from 5 to 30 A 1 to 4 changeover contacts Variants with built-in LED or test button Tailor-made accessories from cross-connections to marker

Depth	35.4 mm
Depth (inches)	1.394 inch
Height	27.2 mm
Height (inches)	1.071 inch
Width	21 mm
Width (inches)	0.827 inch
Net weight	35 g



Order No.	Type
7760054288	DRE570730L
7760054281	DRE570012L
7760054282	DRE570024L
7760054283	DRE570048L
7760054284	DRE570110L
7760054285	DRE570524L
7760054286	DRE570548L
7760054287	DRE570615L
7760054289	DRE570024LD

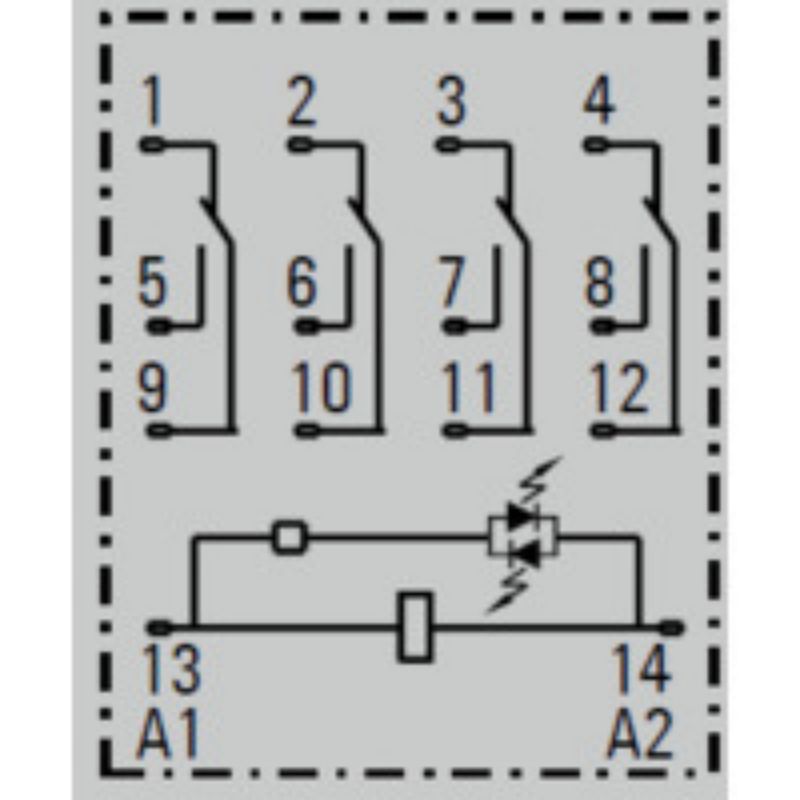

Version	D-SERIES DRE, Relay, Number of contacts: 4, CO contact, Ag alloy, Rated control voltage: 24 V DC, Continuous current: 3 A, Plug-in connection
Order No.	7760054282
Type	DRE570024L
GTIN (EAN)	6944169719905
Qty.	20 pc(s).
Local product	Only available in certain countries
