Version	Power supply, switch-mode power supply unit, 24 V
Order No.	2467120000
Type	PRO TOP3 960W 24V 40A
GTIN (EAN)	4050118482027
Qty.	1 pc(s).



Depth	175 mm
Depth (inches)	6.89 inch
Height	130 mm
Height (inches)	5.118 inch
Width	89 mm
Width (inches)	3.504 inch
Net weight	2,490 g



Order No.	Type
2467080000	PRO TOP3 240W 24V 10A
2467060000	PRO TOP3 120W 24V 5A
2467100000	PRO TOP3 480W 24V 20A
2467150000	PRO TOP3 480W 48V 10A
2467120000	PRO TOP3 960W 24V 40A
2467170000	PRO TOP3 960W 48V 20A



AC input voltage range	3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC
Connection system	PUSH IN
Current consumption in relation to the input voltage Voltage type 3-phase AC Input voltage 320 V Input current 3.4 A   Voltage type DC Input voltage 400 V Input current 3.2 A
DC input voltage range	450...800 V DC (max. 500 V DC acc. to UL508)
Frequency range AC	45…65 Hz
Input fuse (internal)	No
Inrush current	Max. 10 A
Nominal power consumption	1,007 W
Rated input voltage	3x 400...3x 500 V AC (wide-range input)
Recommended back-up fuse	6 - 8 A, Char. C
Surge protection	Varistor



Connection system	PUSH IN
DCL - peak load reserve Boost duration 5 s Multiple of the rated current 150 %   Boost duration 15 ms Multiple of the rated current 400 %
Mains failure bridge-over time	> 20 ms @ 115V AC/ 230 VAC

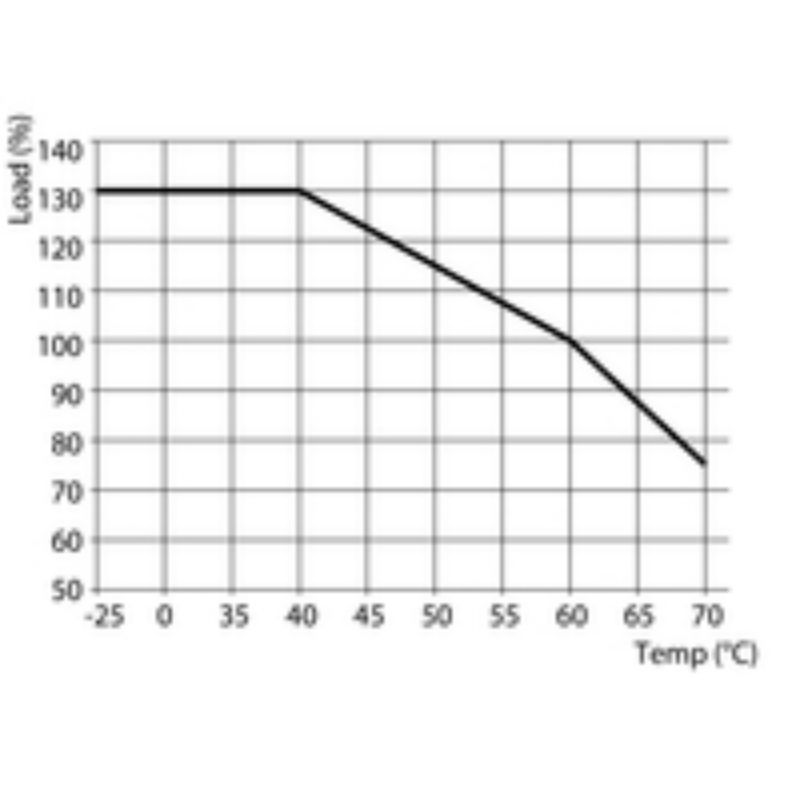

Nominal output current for Unom	40 A @ 60 °C
Output power	960 W
Output voltage, max.	28.8 V
Output voltage, min.	22.5 V
Output voltage, note	adjustable with potentiometer or comunication module
Parallel connection option	yes, max 10
Protection against inverse voltage	Yes
Ramp-up time	≤ 100 ms
Rated output voltage	24 V DC ± 1 %
Residual ripple, breaking spikes	< 50 mVss @ UNenn, Full Load
