Universal industrial relays with high efficiency. D-SERIES relays have been developed for universal use in industrial automation applications where high efficiency is required. They have many innovative functions and are available in a particularly large number of variants and in a wide range of designs for the most diverse applications. Thanks to various contact materials (AgNi and AgSnO etc.), D-SERIES products are suitable for low, medium and high loads. Variants with coil voltages from 5 V DC to 380 V AC enable use with every conceivable control voltage. The clever contact series connection and a built-in blowout magnet reduce contact erosion for loads up to 220 V DC/10 A, thus extending the service life. The optional status LED plus test button ensures convenient service operations. D-SERIES relays are available in DRI and DRM versions with either sockets for PUSH IN technology or screw connection and can be supplemented with a wide range of accessories. These include markers and pluggable protective circuits with LEDs or free-wheeling diodes. Control voltages from 12 to 230 V Switching currents from 5 to 30 A 1 to 4 changeover contacts Variants with built-in LED or test button Tailor-made accessories from cross-connections to marker

Depth	29.2 mm
Depth (inches)	1.15 inch
Height	73.3 mm
Height (inches)	2.886 inch
Width	15.8 mm
Width (inches)	0.622 inch
Net weight	23 g



Order No.	Type
7760056351	SDI 2CO
7760056387	SDI 1CO ECO C
7760056388	SDI 2CO ECO C
7760056364	SDI 1CO P
7760056350	SDI 1CO
7760056346	SDI 1CO ECO
7760056348	SDI 1CO F ECO
7760056365	SDI 2CO P
7760056347	SDI 2CO ECO
7760056349	SDI 2CO F ECO

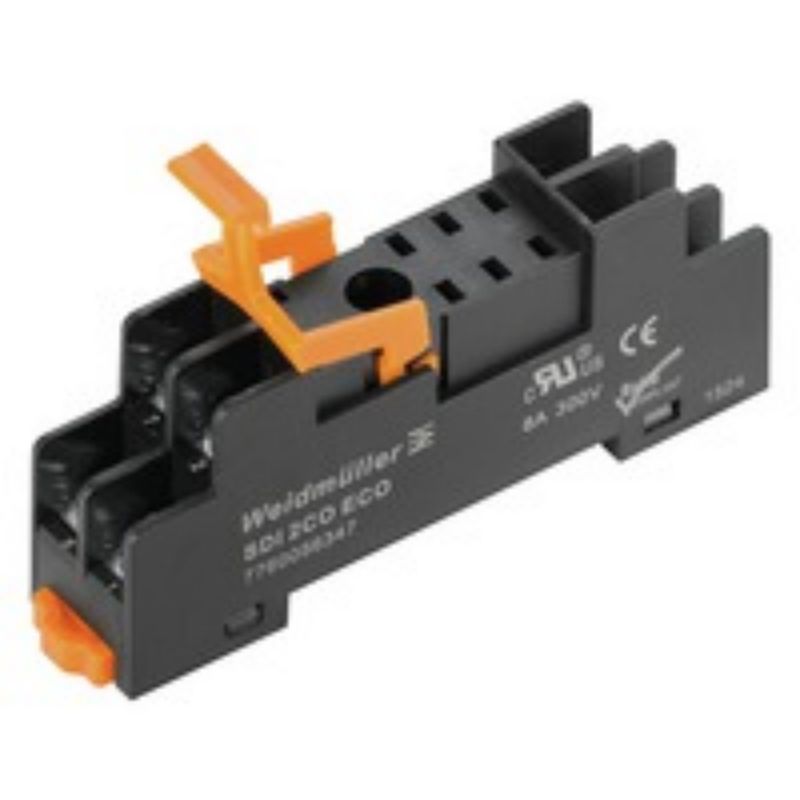

Version	D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection
Order No.	7760056347
Type	SDI 2CO ECO
GTIN (EAN)	6944169739941
Qty.	10 pc(s).
