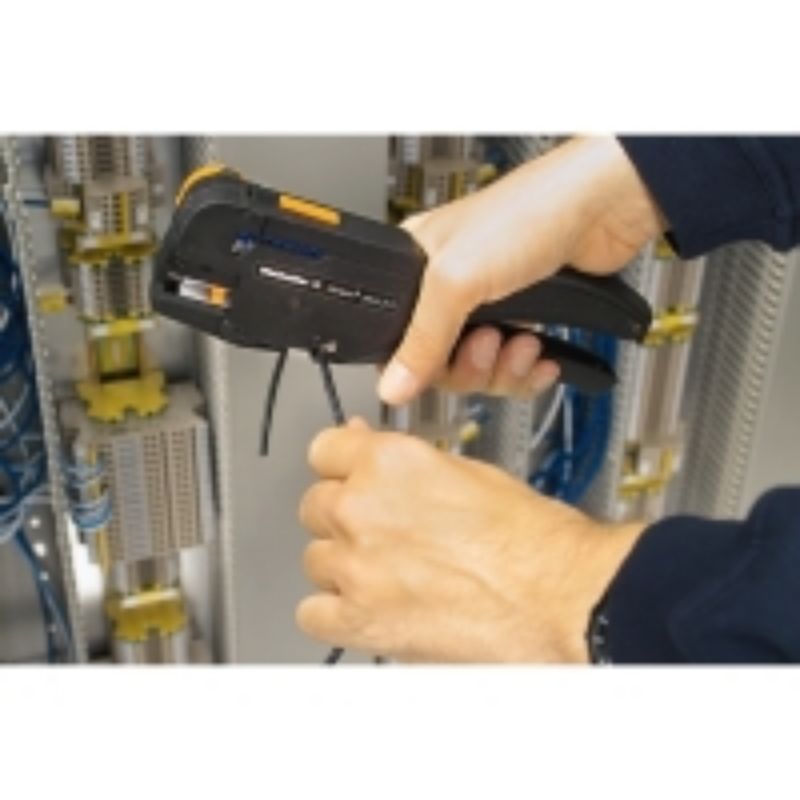

Cutting, stripping and crimping tools for connected wire-end ferrules strips Cutting Stripping Crimping Automatic feeding of wire end ferrules Ratchet guarantees precise crimping Release option in the event of incorrect operation Efficient: only one tool needed for cable work, and thus significant time saved Only strips of linked wire end ferrules, each containing 50 pieces, from Weidmüller may be processed. The use of wire end ferrules on reels may lead to destructon.

Width	210 mm
Width (inches)	8.268 inch
Net weight	250.91 g



Version	Cutting, stripping and crimping tool, Crimping tool for wire-end ferrules, 0.5mm², 2.5mm², Trapezoidal crimp
Order No.	9020000000
Type	STRIPAX PLUS 2.5
GTIN (EAN)	4008190067267
Qty.	1 pc(s).



Order No.	Type
9005000000	STRIPAX
9005610000	STRIPAX 16
1468880000	STRIPAX ULTIMATE
1512780000	STRIPAX ULTIMATE XL

     After stripping the insulation, a suitable contact or wire end ferrule can be crimped onto the end of the cable. Crimping forms a secure connection between conductor and contact and has largely replaced soldering. Crimping denotes the creation of a homogeneous, permanent connection between conductor and connecting element. The connection can be made only with high-quality precision tools. The result is a secure and reliable connection both in mechanical and electrical terms. Weidmüller offers a wide range of mechanical crimping tools. Integral ratchets with release mechanisms guarantee optimum crimping. Crimped connections made with Weidmüller tools comply with international standards and regulations. Precision tools from Weidmüller are in use worldwide. Weidmüller takes this responsibility seriously and offers comprehensive services. Tools should still function perfectly even after many years of constant use. Weidmüller therefore offers its customers the "Tool Certification" service. This technical testing routine allows Weidmüller to guarantee the proper functioning and quality of its tools.
