The all-rounders in a terminal block format. TERMSERIES relay modules and solid-state relays are real all-rounders in the extensive Klippon® Relay portfolio. The pluggable modules are available in many variants and can be exchanged quickly and easily – they are ideal for use in modular systems. Their large illuminated ejection lever also serves as a status LED with integrated holder for markers, making maintenance easier. TERMSERIES products are particularly space-saving and are available in widths from 6.4 mm. Besides their versatility, they convince through their extensive accessories and unlimited cross-connection possibilities. 1 and 2 CO contacts, 1 NO contact Unique multi-voltage input from 24 to 230 V UC Input voltages from 5 V DC to 230 V UC with coloured marking: AC: red, DC: blue, UC: white Variants with test button Due to high-quality design and no sharp edges no risk of injuries during installation Partition plates for optical separation and reinforcement of insulationr

Depth	55 mm
Depth (inches)	2.165 inch
Height	74.4 mm
Height (inches)	2.929 inch
Width	6.1 mm
Width (inches)	0.24 inch
Net weight	20.7 g



Order No.	Type
8950720000	TOS 24VDC/48VDC 0,1A
8950700000	TOS 5VDC/48VDC 0,1A
8950710000	TOS 12VDC/48VDC 0,1A
8950820000	TOS 24VAC/48VDC 0,1A
8950730000	TOS 48-60VDC/48VDC 0,1A
8950830000	TOS 48-60VAC/48VDC 0,1A
8950740000	TOS 110VDC/48VDC 0,1A
8950840000	TOS 120VAC/48VDC 0,1A
8950750000	TOS 220VDC/48VDC 0,1A
8950850000	TOS 230VAC/48VDC 0,1A

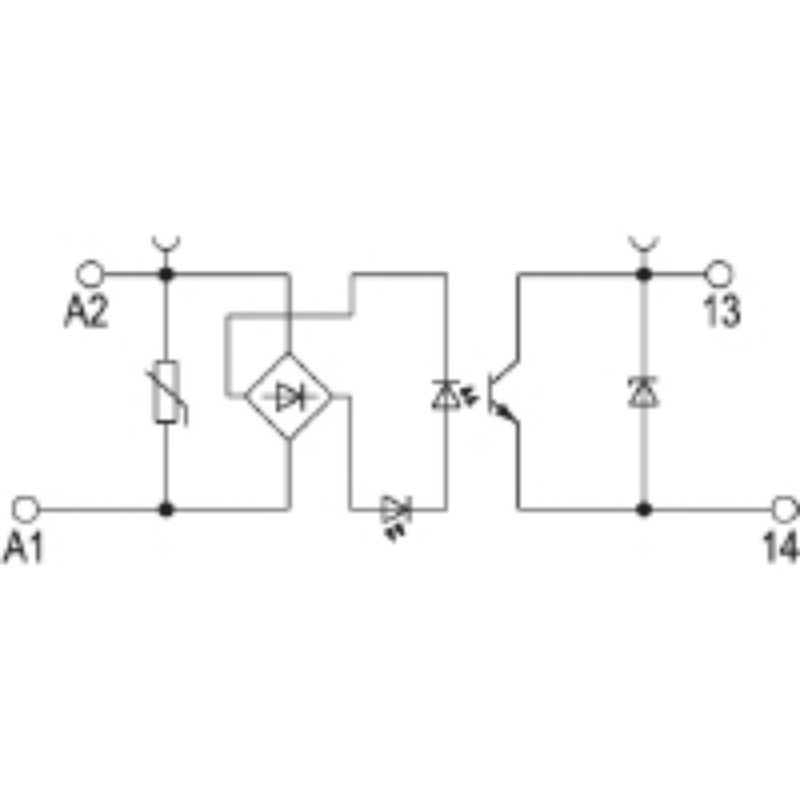

Version	TERMOPTO, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 5...48 V DC, Continuous current: 100 mA, Screw connection
Order No.	8950720000
Type	TOS 24VDC/48VDC 0,1A
GTIN (EAN)	4032248742097
Qty.	10 pc(s).
