Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulle‘s W series terminal blocks save space， Small “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

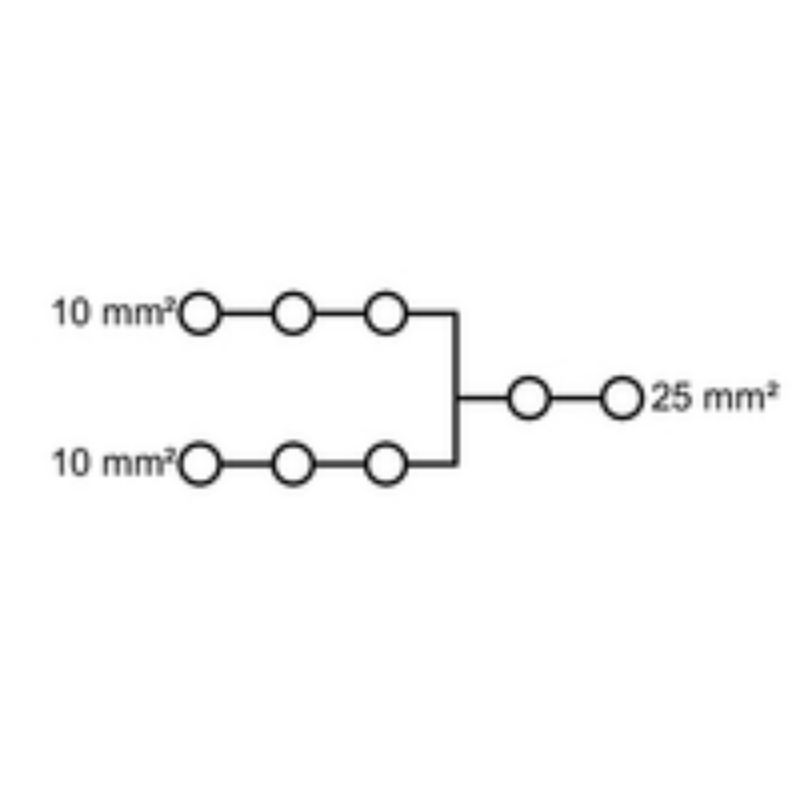

Version	W-Series, Distribution block, Rated cross-section: 25 mm², Screw connection, Terminal rail / mounting plate
Order No.	1561910000
Type	WPD 100 2X25/6X10 GY
GTIN (EAN)	4050118367218
Qty.	3 pc(s).



Depth	49 mm
Depth (inches)	1.929 inch
Height	55.4 mm
Height (inches)	2.181 inch
Width	30.2 mm
Width (inches)	1.189 inch
Net weight	102 g



Order No.	Type
2814490000	WPD 100 2X25/6X10 BK
1561920000	WPD 100 2X25/6X10 BL
2814500000	WPD 100 2X25/6X10 BN
1561930000	WPD 100 2X25/6X10 GN
