Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulle‘s W series terminal blocks save space， Small “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

Version	W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate
Order No.	1561770000

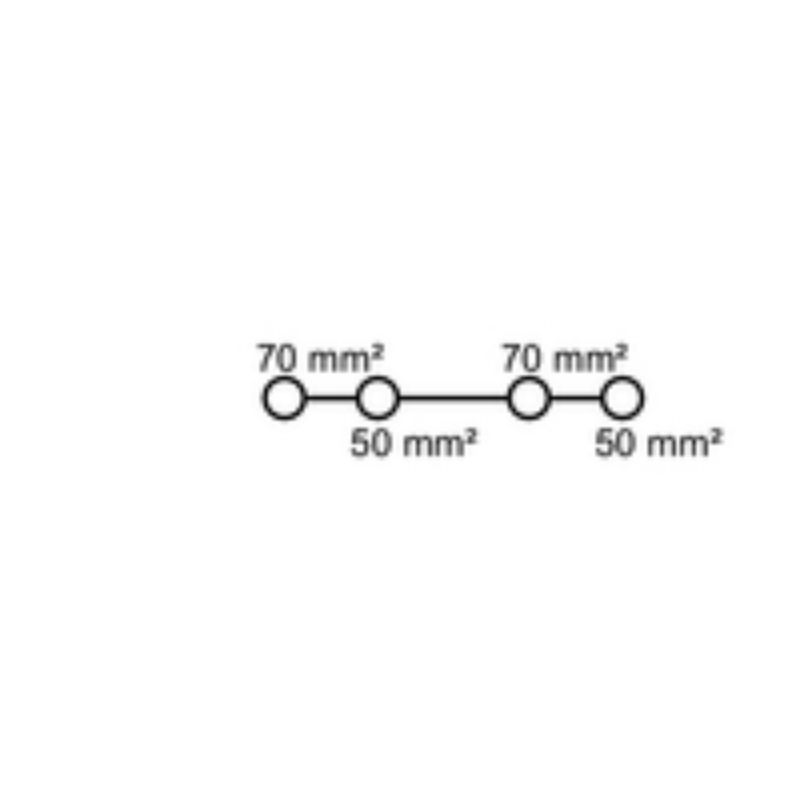

Type	WPD 103 2X70/2X50 GY
GTIN (EAN)	4050118366693
Qty.	3 pc(s).



Depth	53.3 mm
Depth (inches)	2.098 inch
Height	63 mm
Height (inches)	2.48 inch
Width	32.8 mm
Width (inches)	1.291 inch
Net weight	171 g



Order No.:1561830000	Type: WPD 103 2X70/2X50 BK
Order No.: 1561780000	Type: WPD 103 2X70/2X50 BL
Order No.: 1561820000	Type: WPD 103 2X70/2X50 BN
Order No.: 1561790000	Type: WPD 103 2X70/2X50 GN
