Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulle‘s W series terminal blocks save space， Small “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

Version	W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate
Order No.	1562210000

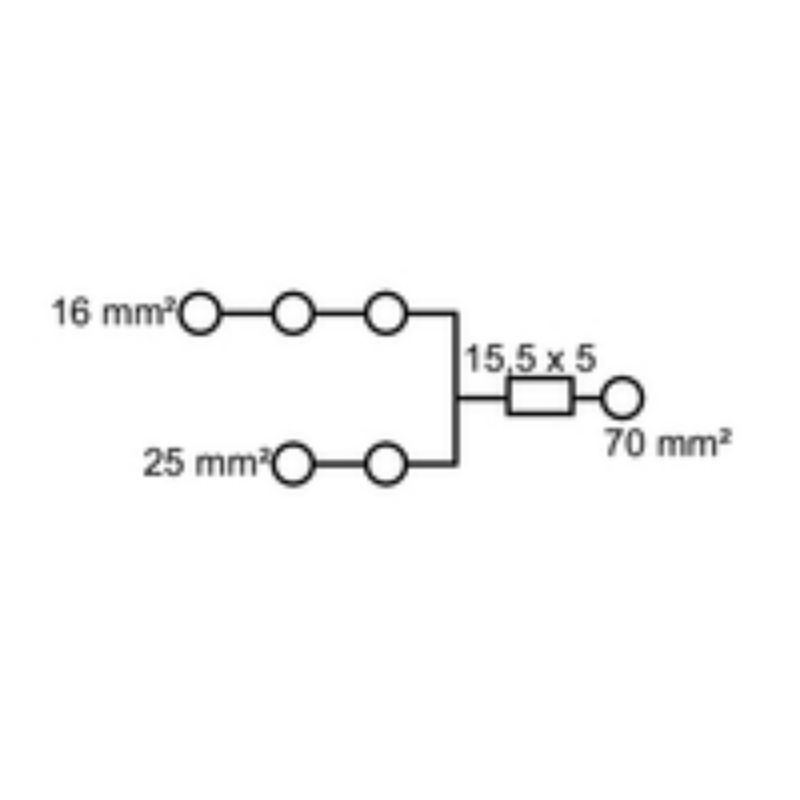

Type	WPD 106 1X70/2X25+3X16 GY
GTIN (EAN)	4050118385281
Qty.	1 pc(s).



Depth	50.4 mm
Depth (inches)	1.984 inch
Height	74.5 mm
Height (inches)	2.933 inch
Width	39.5 mm
Width (inches)	1.555 inch
Net weight	200 g



Order No.	Type
2725440000	WPD 106 1X70/2X25+3X16 BK
2518570000	WPD 106 1X70/2X25+3X16 BL
2725340000	WPD 106 1X70/2X25+3X16 RD
