The safety and availability of plants must be guaranteed at all times.Careful planning and installation of safety functions play a particularly important role. For personnel protection, we offer a wide range of PE terminal blocks in different connection technologies. With our wide range of KLBU shield connections, you can achieve flexible and self-adjusting shield contacting and ensure error-free plant operation. Shielding and earthing，Our protective earth conductor and shielding terminals featuring different connection technologies allow you to effectively protect both people and  equipment from interference, such as electrical or magnetic fields. A comprehensive range of accessories rounds off our range. Weidmuller offers white PE terminals from the ”A-, W- and Z series“ product family for systems in which this distinction should or must be made. The colour of these terminals clearly indicates that the respective circuits are exclusively to provide functional protection for the connected electronic system.

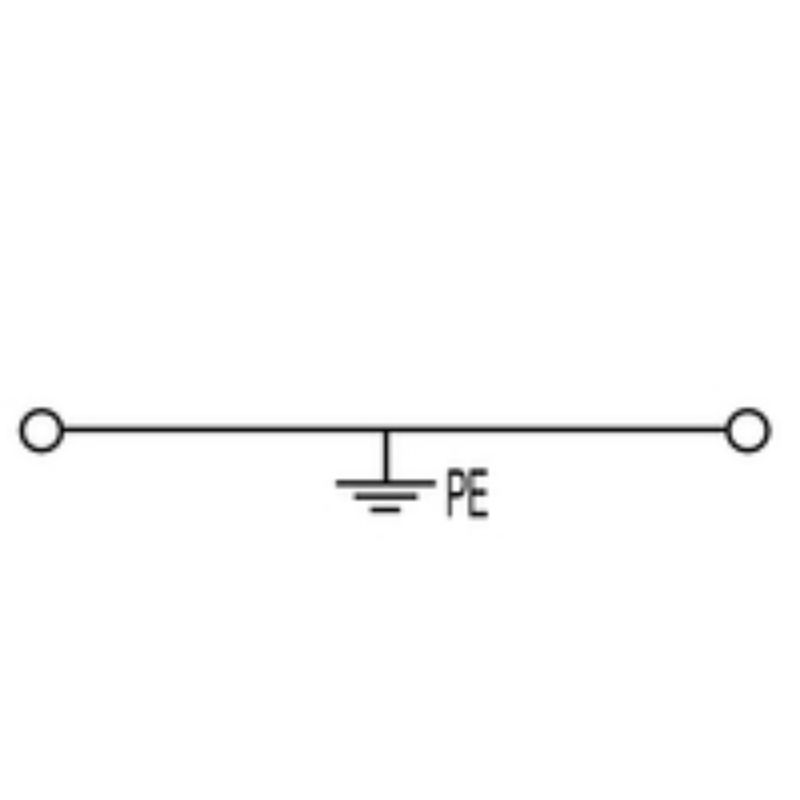

Version	PE terminal, Screw connection, 35 mm², 4200 A (35 mm²), Green/yellow
Order No.	1717740000
Type	WPE 35N
GTIN (EAN)	4008190351854
Qty.	20 pc(s).



Depth	50.5 mm
Depth (inches)	1.988 inch
Depth including DIN rail	51 mm
Height	66 mm
Height (inches)	2.598 inch
Width	16 mm
Width (inches)	0.63 inch
Net weight	76.84 g



Order No.: 1010500000	Type: WPE 35
Order No.: 1012600000	Type:WPE 35/IKSC
