Weidmüller offers plug-in and screwed cross-connection systems for screw-connection terminal blocks. The plug-in cross-connections feature easy handling and quick installation. This saves a great deal of time during installation in comparison with screwed solutions. This also ensures that all poles always contact reliably. Fitting and changing cross connections The fitting and changing of cross-connections is a trouble-free and fast operation: – Insert the cross-connection into the cross connection channel in the terminal...and press it fully home. (The cross-connection may not project from the channel.) Remove a cross-connection by simply prising it out with a screwdriver. Shortening cross-connections Cross-connections can be shortened in length using a suitable cutting tool, However, three contact elements must always be retained. Breaking out contact elements If one or more (max. 60 % for reasons of stability and temperature rise) of the contact elements are broken out of the cross-connections, terminals may be bypassed to suit the application. Caution: Contact elements must not be deformed! Note: By using manually cut ZQV and crossconnections with blank cut edges (> 10 poles) the voltage reduces to 25 V.

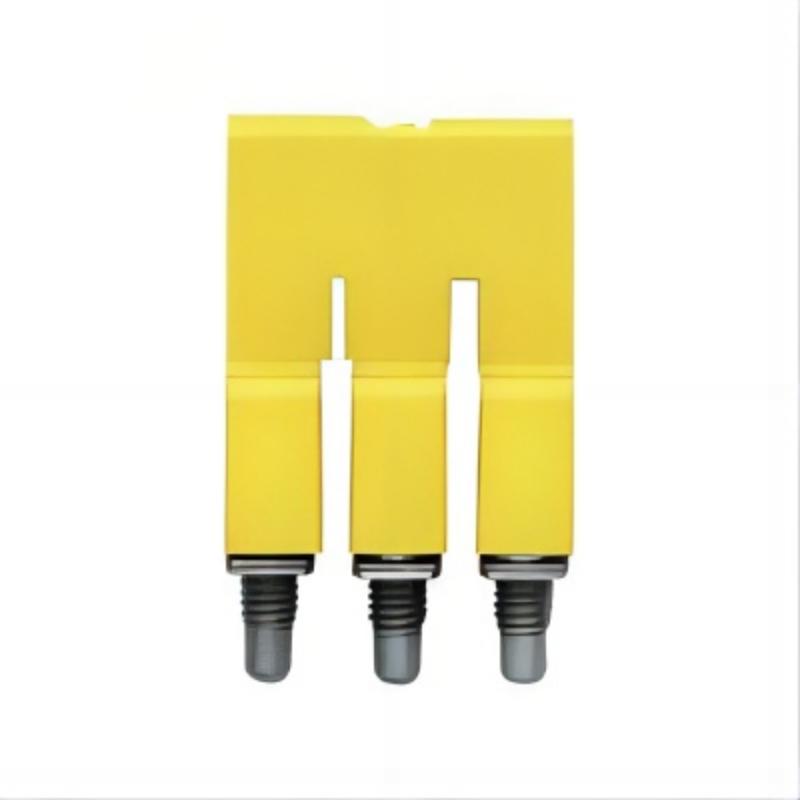

Version	W-Series, Cross-connector, For the terminals, Number of poles: 2
Order No.	1053660000
Type	WQV 2.5/2
GTIN (EAN)	4008190031121
Qty.	50 pc(s).



Depth	18 mm
Depth (inches)	0.709 inch
Height	9.1 mm
Height (inches)	0.358 inch
Width	7 mm
Width (inches)	0.276 inch
Net weight	1.48 g



Order No.	Type
1054460000	WQV 2.5/10
1059660000	WQV 2.5/15
1577570000	WQV 2.5/20
1053760000	WQV 2.5/3
1067500000	WQV 2.5/30
1577600000	WQV 2.5/32
1053860000	WQV 2.5/4
1053960000	WQV 2.5/5
1054060000	WQV 2.5/6
1054160000	WQV 2.5/7
1054260000	WQV 2.5/8
1054360000	WQV 2.5/9
1053660000	WQV 2.5/2
