Time saving 1.Integrated test point 2.Simple handling thanks to parallel alignment of conductor entry 3.Can be wired without special tools Space saving 1.Compact design 2.Length reduced by up to 36 percent in roof style Safety 1.Shock and vibration proof• 2.Separation of electrical and mechanical functions 3.No-maintenance connection for a safe, gas-tight contacting 4.The tension clamp is made of steel with an externally-sprung contact for optimum contact force 5.Current bar made of copper for low voltage Drop Flexibility 1.Pluggable standard cross-connections for flexible potential distribution 2.Secure interlocking of all plug-in connectors (WeiCoS) Exceptionally practical The Z-Series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants. The striking shape of the roof style gives a reduction in length of up to 36 percent compared to standard terminal blocks.  Simple and clear  Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.

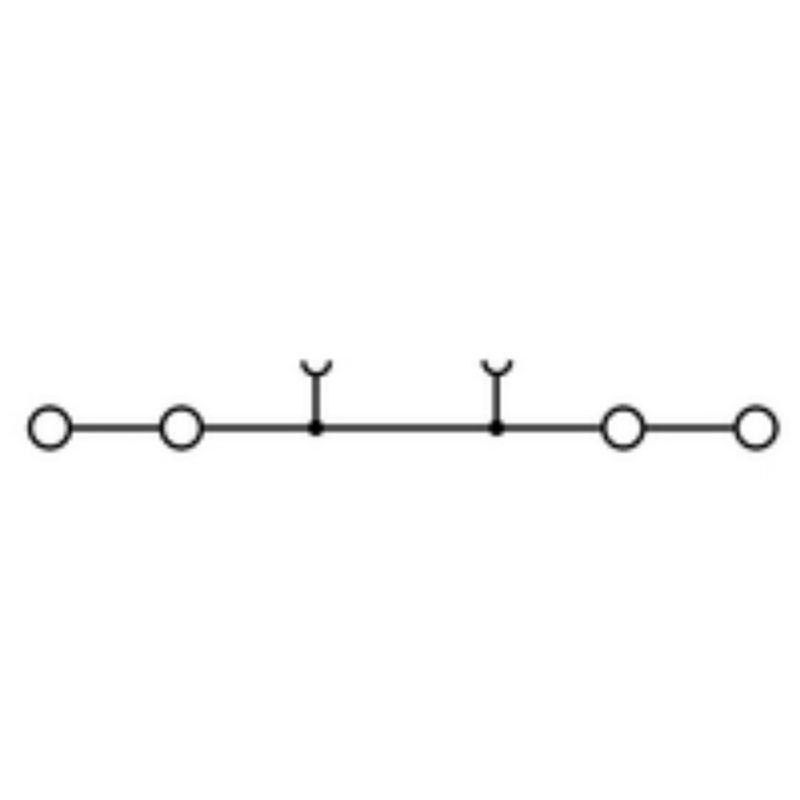

Version	Feed-through terminal, Tension-clamp connection, 1.5 mm², 500 V, 17.5 A, dark beige
Order No.	1775580000
Type	ZDU 1.5/4AN
GTIN (EAN)	4032248181629
Qty.	100 pc(s).



Depth	36.5 mm
Depth (inches)	1.437 inch
Depth including DIN rail	37 mm
Height	75.5 mm
Height (inches)	2.972 inch
Width	3.5 mm
Width (inches)	0.138 inch
Net weight	6.54 g



Order No.	Type
1775490000	ZDU 1.5 BL
1775500000	ZDU 1.5 OR
1826970000	ZDU 1.5/2X2AN
1827000000	ZDU 1.5/2X2AN OR
1775530000	ZDU 1.5/3AN
1775540000	ZDU 1.5/3AN BL
1775550000	ZDU 1.5/3AN OR
1775580000	ZDU 1.5/4AN
1775600000	ZDU 1.5/4AN BL
