Time saving 1.Integrated test point 2.Simple handling thanks to parallel alignment of conductor entry 3.Can be wired without special tools Space saving 1.Compact design 2.Length reduced by up to 36 percent in roof style Safety 1.Shock and vibration proof• 2.Separation of electrical and mechanical functions 3.No-maintenance connection for a safe, gas-tight contacting 4.The tension clamp is made of steel with an externally-sprung contact for optimum contact force 5.Current bar made of copper for low voltage Drop Flexibility 1.Pluggable standard cross-connections for flexible potential distribution 2.Secure interlocking of all plug-in connectors (WeiCoS) Exceptionally practical The Z-Series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants. The striking shape of the roof style gives a reduction in length of up to 36 percent compared to standard terminal blocks.  Simple and clear  Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.

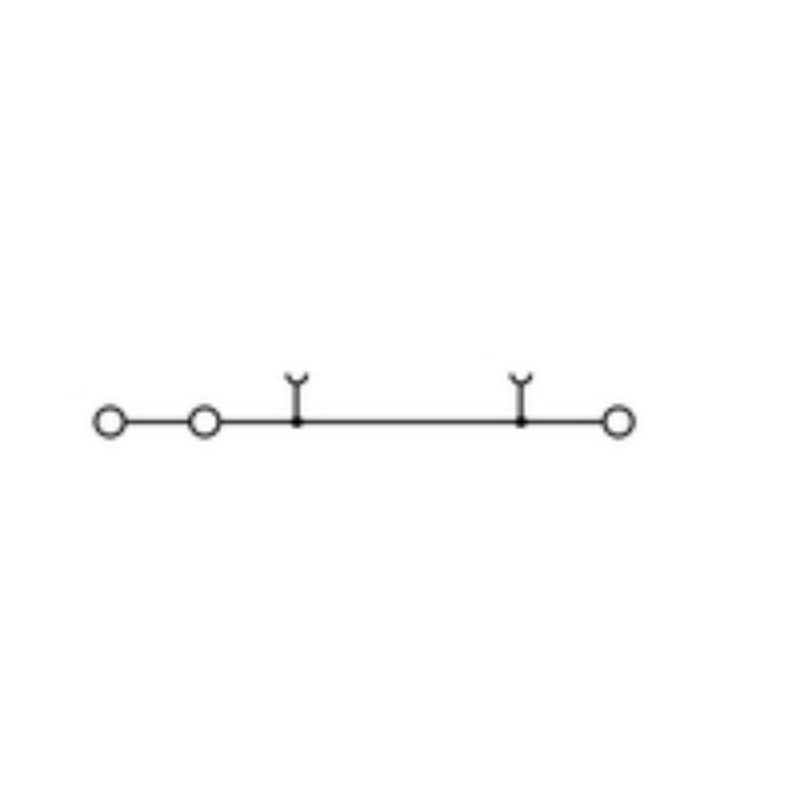

Version	Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
Order No.	1608540000
Type	ZDU 2.5/3AN
GTIN (EAN)	4008190077327
Qty.	100 pc(s).



Depth	38.5 mm
Depth (inches)	1.516 inch
Depth including DIN rail	39.5 mm
Height	64.5 mm
Height (inches)	2.539 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	9.05 g



Order No.	Type
1608520000	ZDU 2.5 BL
1683300000	ZDU 2.5 BR
1683270000	ZDU 2.5 GE
1683280000	ZDU 2.5 GN
1683310000	ZDU 2.5 GR
1636780000	ZDU 2.5 OR
1781820000	ZDU 2.5 PACK
1683260000	ZDU 2.5 RT
1683330000	ZDU 2.5 SW
1683290000	ZDU 2.5 VI
1683320000	ZDU 2.5 WS
1608600000	ZDU 2.5/2X2AN
1608540000	ZDU 2.5/3AN
1608570000	ZDU 2.5/4AN
1608510000	ZDU 2.5
