Time saving 1.Integrated test point 2.Simple handling thanks to parallel alignment of conductor entry 3.Can be wired without special tools Space saving 1.Compact design 2.Length reduced by up to 36 percent in roof style Safety 1.Shock and vibration proof• 2.Separation of electrical and mechanical functions 3.No-maintenance connection for a safe, gas-tight contacting 4.The tension clamp is made of steel with an externally-sprung contact for optimum contact force 5.Current bar made of copper for low voltage Drop Flexibility 1.Pluggable standard cross-connections for flexible potential distribution 2.Secure interlocking of all plug-in connectors (WeiCoS) Exceptionally practical The Z-Series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants. The striking shape of the roof style gives a reduction in length of up to 36 percent compared to standard terminal blocks.  Simple and clear  Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.

Version	Z-series, Cross-connector, 24 A
Order No.	1608860000
Type	ZQV 2.5/2
GTIN (EAN)	4008190123680
Qty.	60 pc(s).



Depth	27.6 mm
Depth (inches)	1.087 inch
Height	8.5 mm
Height (inches)	0.335 inch
Width	2.8 mm
Width (inches)	0.11 inch
Net weight	1.2 g



Order No.	Type
1608860000	ZQV 2.5/2
1608870000	ZQV 2.5/3

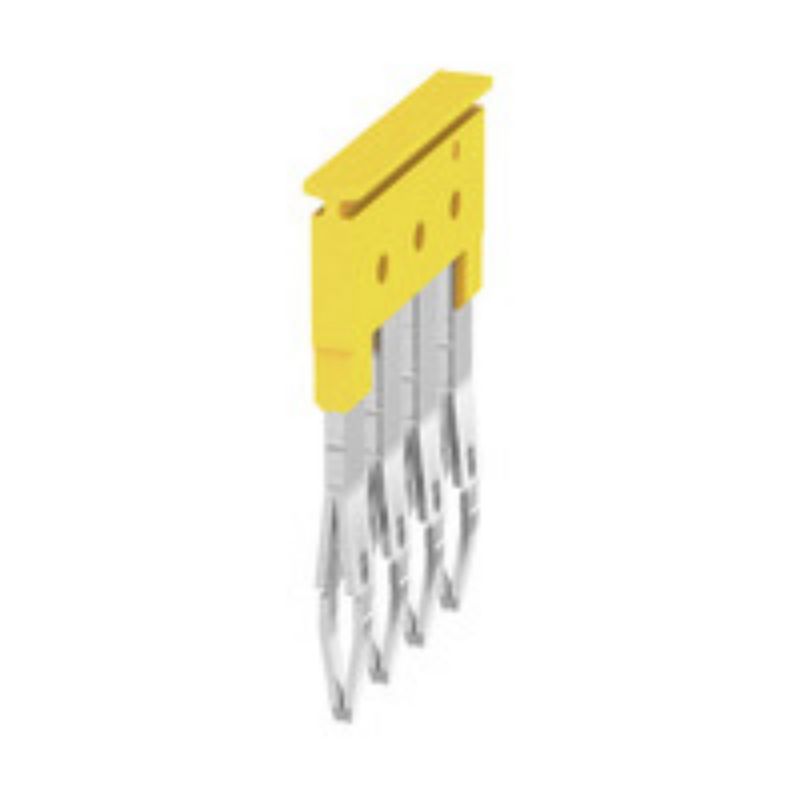

1608880000	ZQV 2.5/4
1608890000	ZQV 2.5/5
1608900000	ZQV 2.5/6
1608910000	ZQV 2.5/7
1608920000	ZQV 2.5/8
1608930000	ZQV 2.5/9
1608940000	ZQV 2.5/10
1908960000	ZQV 2.5/20
