Time saving 1.Integrated test point 2.Simple handling thanks to parallel alignment of conductor entry 3.Can be wired without special tools Space saving 1.Compact design 2.Length reduced by up to 36 percent in roof style Safety 1.Shock and vibration proof• 2.Separation of electrical and mechanical functions 3.No-maintenance connection for a safe, gas-tight contacting 4.The tension clamp is made of steel with an externally-sprung contact for optimum contact force 5.Current bar made of copper for low voltage Drop Flexibility 1.Pluggable standard cross-connections for flexible potential distribution 2.Secure interlocking of all plug-in connectors (WeiCoS) Exceptionally practical The Z-Series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants. The striking shape of the roof style gives a reduction in length of up to 36 percent compared to standard terminal blocks.  Simple and clear  Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.

Version	Accessories, Cross-connector, 32 A
Order No.	1608950000
Type	ZQV 4/2 GE
GTIN (EAN)	4008190263225
Qty.	60 pc(s).



Depth	31.6 mm
Depth (inches)	1.244 inch
Height	10.5 mm
Height (inches)	0.413 inch
Width	2.8 mm
Width (inches)	0.11 inch
Net weight	1.619 g



Order No.	Type
1608950000	ZQV 4/2 GE

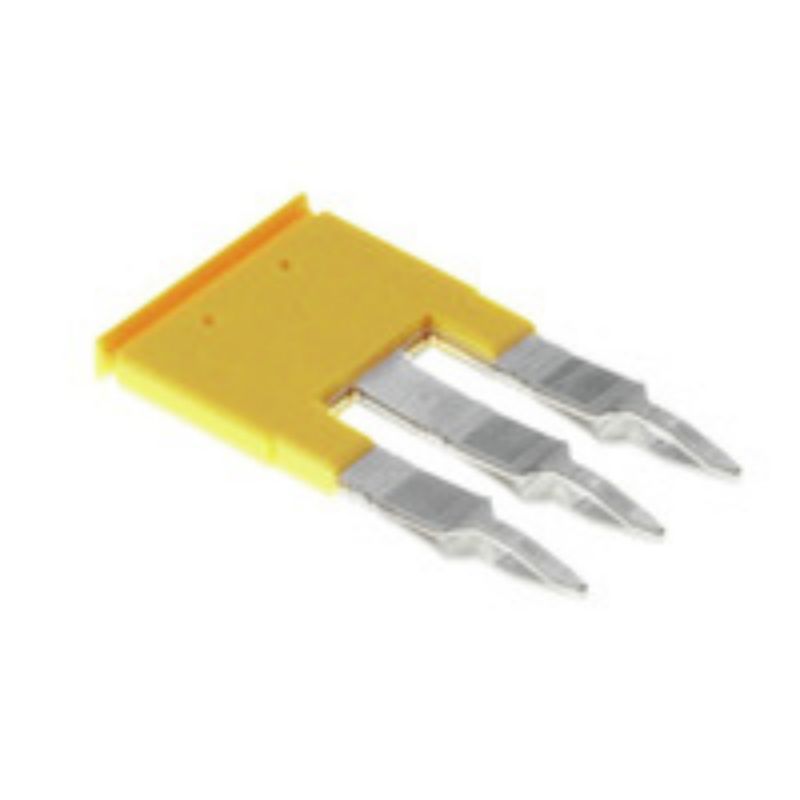

1608960000	ZQV 4/3 GE
1608970000	ZQV 4/4 GE
1608980000	ZQV 4/5 GE
1608990000	ZQV 4/6 GE
1609000000	ZQV 4/7 GE
1609010000	ZQV 4/8 GE
1609020000	ZQV 4/9 GE
1609030000	ZQV 4/10 GE
1909010000	ZQV 4/20 GE
