Time saving 1.Integrated test point 2.Simple handling thanks to parallel alignment of conductor entry 3.Can be wired without special tools Space saving 1.Compact design 2.Length reduced by up to 36 percent in roof style Safety 1.Shock and vibration proof• 2.Separation of electrical and mechanical functions 3.No-maintenance connection for a safe, gas-tight contacting 4.The tension clamp is made of steel with an externally-sprung contact for optimum contact force 5.Current bar made of copper for low voltage Drop Flexibility 1.Pluggable standard cross-connections for flexible potential distribution 2.Secure interlocking of all plug-in connectors (WeiCoS) Exceptionally practical The Z-Series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants. The striking shape of the roof style gives a reduction in length of up to 36 percent compared to standard terminal blocks.  Simple and clear  Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.

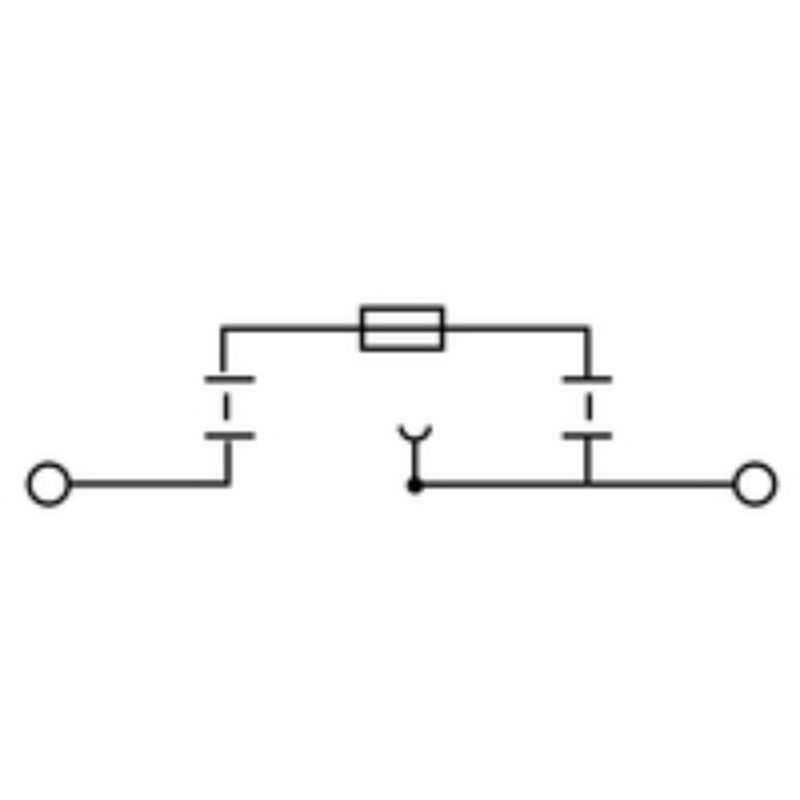

Version	Z-series, Fuse terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting
Order No.	1616400000
Type	ZSI 2.5
GTIN (EAN)	4008190196592
Qty.	50 pc(s).



Depth	73 mm
Depth (inches)	2.874 inch
Depth including DIN rail	74 mm
Height	79.5 mm
Height (inches)	3.13 inch
Width	7.9 mm
Width (inches)	0.311 inch
Net weight	19.54 g



Order No.	Type
1315800000	ZSI 2.5 BL
1315790000	ZSI 2.5 GE
1315840000	ZSI 2.5 GR
1686470000	ZSI 2.5 OR
1315780000	ZSI 2.5 RT
1315820000	ZSI 2.5 SW
1616420000	ZSI 2.5/LD 120AC
1616410000	ZSI 2.5/LD 250AC
1616440000	ZSI 2.5/LD 28AC
1616430000	ZSI 2.5/LD 60AC
1799470000	ZSI 2.5/QV
