Time saving 1.Integrated test point 2.Simple handling thanks to parallel alignment of conductor entry 3.Can be wired without special tools Space saving 1.Compact design 2.Length reduced by up to 36 percent in roof style Safety 1.Shock and vibration proof• 2.Separation of electrical and mechanical functions 3.No-maintenance connection for a safe, gas-tight contacting 4.The tension clamp is made of steel with an externally-sprung contact for optimum contact force 5.Current bar made of copper for low voltage Drop Flexibility 1.Pluggable standard cross-connections for flexible potential distribution 2.Secure interlocking of all plug-in connectors (WeiCoS) Exceptionally practical The Z-Series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants. The striking shape of the roof style gives a reduction in length of up to 36 percent compared to standard terminal blocks.  Simple and clear  Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.

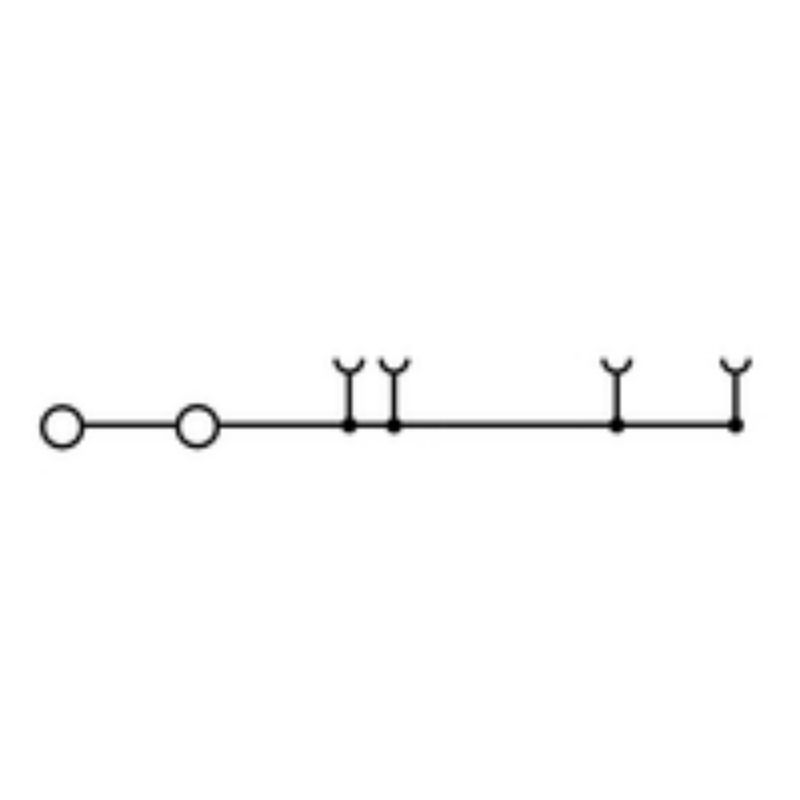

Version	Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
Order No.	1815110000
Type	ZT 2.5/4AN/2
GTIN (EAN)	4032248370023
Qty.	50 pc(s).



Depth	34.5 mm
Depth (inches)	1.358 inch
Depth including DIN rail	35 mm
Height	93 mm
Height (inches)	3.661 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	9.32 g



Order No.	Type
1815070000	ZT 2.5/2AN/1
1815090000	ZT 2.5/3AN/1
1815130000	ZT 2.5/4AN/4
2702510000	ZT 2.5/4AN/4 BL
2702500000	ZT 2.5/4AN/4 OR
2716230000	ZT 2.5/4AN/4 SW
1815140000	ZTPE 2.5/4AN/4
1865510000	ZTTR 2.5
